Gold modular processing plants represent a pre-fabricated, rapidly deployable system for gold ore processing. Their core value lies in low capital intensity, high flexibility, and rapid returns. Their adoption is accelerating, driven by a robust gold market and the industry's broader shift towards digitalization and sustainable practices.
Mines typically opt for a Gold Modular Processing Plant to address the key pain points of traditional, stick-built facilities: high capital expenditure, lengthy timelines, limited flexibility, and elevated risk. This is particularly relevant in today's mining environment, which is often characterized by high uncertainty.
This article explores the definition, process flows, unique advantages, and diverse applications of modular gold plants, along with the essential design and construction services required to build them.

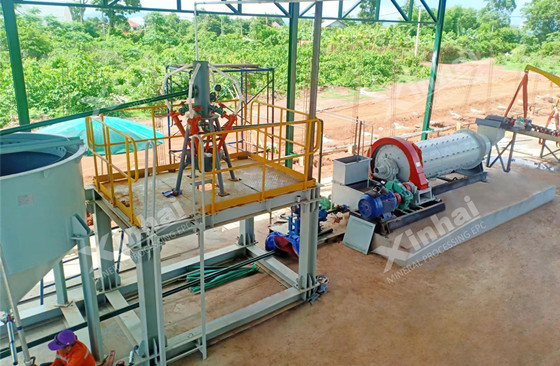

A Gold Modular Processing Plant is a complete mineral processing system where equipment and structures are pre-fabricated and assembled into self-contained modules at a controlled manufacturing facility before being transported to the mine site. These modules are typically designed to fit within standard shipping containers or be skid-mounted for ease of logistics.
The concept is based on pre-fabrication technology. Instead of constructing a plant from the ground up at a remote site, the facility is divided into fully functional modules—such as crushing, grinding, and leaching units. Each module is pre-assembled, pre-wired, and pre-piped at the factory. Upon completion, they are loaded onto trucks or containers for shipment.
Once delivered on-site, the pre-fabricated plant requires minimal civil works. Modules are simply lifted into position, connected via quick-connect points, and tested. This approach stands in stark contrast to traditional on-site construction, which involves extensive field fabrication and extended schedules.
Due to their compact design and ease of installation, these plants are particularly well-suited for remote deposits, small-to-medium scale gold orebodies, and projects with a short mine life requiring rapid deployment.

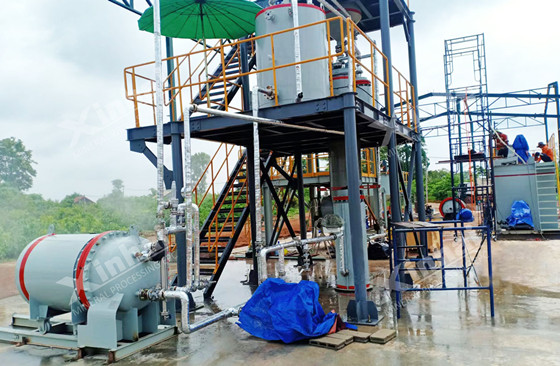

The primary process for a gold modular processing plant is designed with inherent flexibility. While the specific configuration is tailored to the ore type (typically free-milling/oxide or non-refractory ore), the core logical structure remains consistent, comprising four main stages:
1. Crushing & Screening: Run-of-Mine (ROM) ore is reduced to 10-20mm through multi-stage crushing (e.g., jaw/cone crushers) for initial liberation.
2. Grinding & Classification: The crushed ore is fed into a ball mill for fine grinding into slurry (typically to 80% passing 200 mesh). A closed circuit with classifiers (e.g., hydrocyclones) ensures optimal exposure of gold particles.
3. Separation & Recovery (The Most Flexible Stage):
Primary gravity separation (using centrifugal concentrators, shaking tables, etc.) recovers coarse, free gold.
This is followed by CIL/CIP (cyanide leaching and activated carbon adsorption) to extract fine gold.
Flotation may be incorporated as an auxiliary process for certain ores.
4. Downstream Processing:
Loaded carbon is treated through elution and electrowinning to produce gold sludge, which is then smelted into doré bars. Tailings are thickened, dewatered for dry-stacking, and process water is recycled.
In summary, the typical flowsheet for a modular plant is "Crushing → Grinding → Gravity/CIL(CIP) Recovery → Elution & Electrowinning → Tailings Management." The emphasis is on factory pre-fabrication and rapid on-site assembly, making it ideal for small-to-medium scale, non-refractory gold deposits, with the exact flowsheet adjusted based on comprehensive metallurgical test work.
Modular plants are best suited for small-to-medium scale projects with high unit value and relatively straightforward metallurgy, rather than ultra-large, long-life deposits. Typical applications include:
Small, High-Grade Gold Deposits: Such as underground or open-pit orebodies with grades ≥7g/t Au (especially oxide or free-milling ore). For deposits with a short mine life (as little as 2+ years), where a traditional plant is uneconomical, modular solutions enable rapid value realization.
Scattered or Satellite Orebodies: Multiple small, dispersed deposits can be processed by a single, relocatable modular plant moved between sites, or used for pre-concentration before hauling to a central facility, thereby extending overall operational life.
Remote or Infrastructure-Poor Sites: Projects in wilderness areas, with harsh climates, or offshore/onshore exploration sites benefit from the easy transport and fast on-site assembly of modular plants.
Non-Refractory Gold Ores: Free-milling gold, quartz vein types, oxide ores, and alluvial/placer gold are well-suited to a combination of gravity concentration and simple flotation or cyanidation. Complex sulphide ores can be considered if the pre-treatment is well-defined, though highly refractory ores carry greater metallurgical risk.
Exploration, Pilot, or Tailings Retreatment Projects: For exploration phases, small-scale testing, or processing historical tailings dumps, modular plants allow for rapid process verification with lower trial-and-error costs.
Less suitable scenarios include ultra-large, low-grade, very long-life deposits where traditional plants achieve superior economies of scale, or for highly complex, refractory ores with significant process uncertainty—though a modular plant can serve as an effective pilot in such cases.
The debate between modular vs traditional gold processing plant options is crucial during the feasibility study phase. While traditional stick-built plants have been the industry standard for decades, modular plants offer distinct advantages for specific project types.
Below is a comparison between a modular vs fixed gold processing plant:
Feature | Modular Gold Processing Plant | Traditional Gold Processing Plant |
Construction Method | Pre-fabricated in factory, assembled on-site. | Built entirely on-site (stick-built). |
Construction Time | Short (often 50% faster). | Long (subject to weather and site delays). |
Capital Cost | Generally lower due to standardized design. | Higher due to extensive civil works and labor. |
Civil Works | Minimal foundation work required. | Extensive concrete and structural steel work. |
Installation | Fast “plug-and-play” installation. | Lengthy on-site assembly and welding. |
Flexibility | Easily expandable and relocatable. | Fixed location; difficult to move or expand. |
Relocation | Can be moved to a new mine site. | Permanent structure; cannot be relocated. |
Suitability | Small to medium scale, remote areas, short mine life. | Large scale, long-life mega mines. |
The advantages of modular gold plant systems are clear when speed, cost control, and flexibility are the primary objectives.
The traditional gold processing plant represents a capital-intensive, "stick-built, fixed, and high-investment" model. In contrast, the Gold Modular Processing Plant embodies a capital-light approach based on "factory pre-fabrication, rapid deployment, and low-risk implementation." This model is better aligned with modern mining’s demands for speed, cost control, and sustainability, offering clear advantages in the face of gold price volatility and in the development of small- to medium-scale deposits. In practice, process details are tailored according to specific ore characteristics, such as high-grade coarse gold versus fine-grained sulphide gold.
Xinhai can provide not only traditional fixed gold processing plants but also smaller-scale gold plants with capacities such as 5 t/d and 10 t/d. If you are planning to build a gold modular processing plant, selecting an experienced engineering and equipment supplier is critical to ensuring project success. Our team is committed to delivering flexible, fast-track solutions to efficiently transform your gold resources into profit.
Contact us today to discuss your project requirements and learn how our mining solutions can accelerate your journey to production.
