Many medium- to low-grade phosphate ore projects fail to achieve expected recovery and concentrate grade—not because of equipment limitations, but due to inappropriate flotation process selection.
In practice, ores that appear similar often require completely different flotation strategies. Without a clear understanding of mineralogical characteristics and flotation mechanisms, even well-designed plants can suffer from:
Low P₂O₅ recovery
Excessive reagent consumption
Unstable flotation performance
Poor concentrate quality
There is no universal flowsheet for phosphate ore beneficiation—each ore requires a tailored solution.

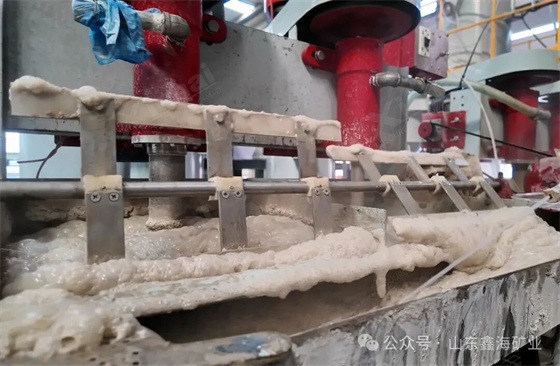

Medium- to low-grade collophosphate (sedimentary phosphate rock) is inherently complex due to:
1. Fine Dissemination and Complex Intergrowth
Liberation requires grinding to 85–90% passing 200 mesh
Overgrinding leads to slime coating and entrainment, reducing selectivity
☞Operational impact: Difficult separation and unstable flotation performance
2. Strong Interference from Impurity Ions
Magnesium ions (Mg²⁺) significantly affect flotation:
Mg²⁺ >0.5 mol/L → collector adsorption decreases by >30%
pH >9 → Mg(OH)₂ colloids form and coat mineral surfaces
In addition, sesquioxides influence the MER (MgO/P₂O₅ ratio), limiting the production of high-grade concentrate suitable for downstream applications.
☞Operational impact: Reduced recovery, higher reagent consumption, and stricter process control requirements

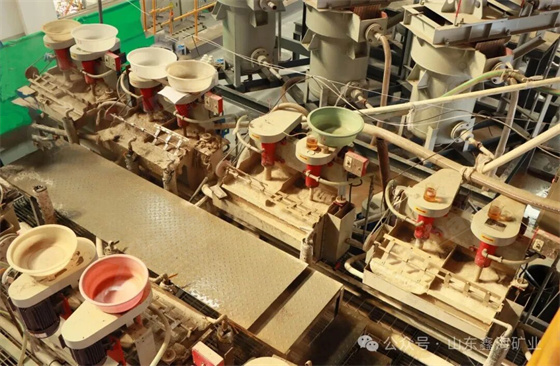

Process Type | Floated Mineral | pH Range | Collector Type | Applicable Ore | Limitations |
Direct Flotation | Phosphate | 9–10 (weakly alkaline) | Fatty acids (e.g., sodium oleate) | Siliceous phosphate (high SiO₂, MgO<1%), relatively coarse feed | Low efficiency for high-Mg ores, high reagent consumption, high-viscosity froth, poor dewatering performance |
Reverse Flotation | Gangue minerals | ~5.0 (acidic) or ~9.0 (alkaline) | Amines (e.g., dodecylamine) | Calcareous (Mg removal) or siliceous (SiO₂ removal) collophosphate | Requires precise control of pH and reagent scheme |
Key takeaway:
Reverse flotation at pH ~5 → effective for magnesium removal (dolomite)
Reverse flotation at pH ~9 → effective for silica removal (quartz)
☞Engineering insight: Selecting the wrong flotation direction is one of the most common causes of poor plant performance.
Single-stage flotation is rarely sufficient. Combined processes are essential for achieving both high recovery and concentrate grade.

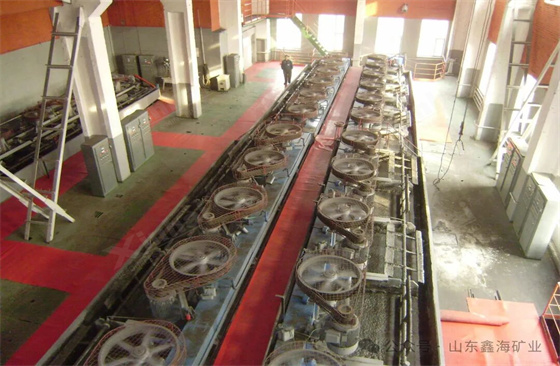

1. Direct–Reverse Flotation (De-silication → De-magnesiation)
Applicable to: Coarser pre-concentrates (–0.074 mm accounting for 40–60%)
Key parameters:
Direct flotation pH: 9.0–9.5
Reagents: sodium carbonate + sodium silicate + MON-135 + LAA-T
Performance:
P₂O₅ grade: ≥32%
Recovery: ≥93%
★Value for your project: Provides a balanced solution between recovery and operating cost, making it ideal for projects targeting stable returns with controlled reagent consumption.

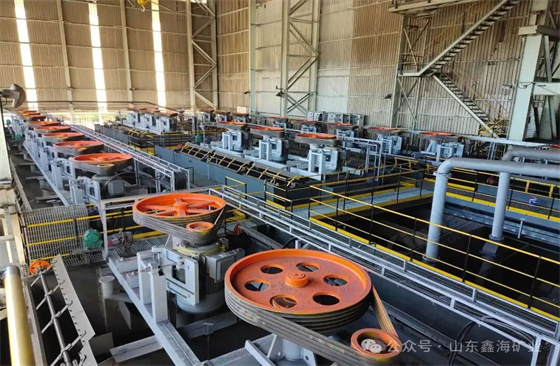

2. Reverse–Direct Flotation (De-magnesiation → De-silication)
Applicable to: Fine-grained ores (–0.074 mm >80%) with high slime content
Key parameters:
Reverse flotation pH: 4.5–5.0
Reagents: sulfuric acid + phosphoric acid + LAA-T
★Value for your project: Improves flotation selectivity in fine ores by mitigating slime effects, resulting in more stable operation and improved recovery.

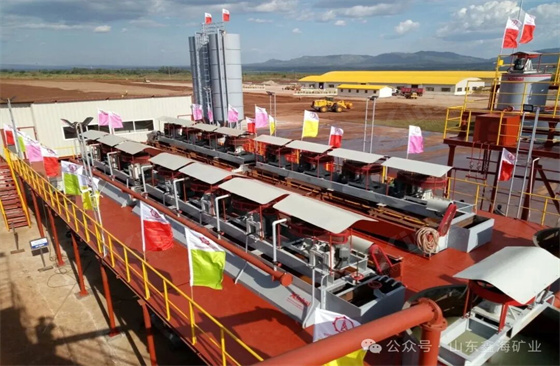

3. Double Reverse Flotation
Applicable to:
Refractory ores with:
High silicate and carbonate content
Very fine dissemination (10–20 μm)
High sesquioxides
Control conditions:
Stage 1: pH ≈5 (Mg removal)
Stage 2: pH ≈9 (SiO₂ removal)
★Value for your project: A necessary solution for complex ores where conventional processes fail, enabling high-grade concentrate production at the cost of higher process complexity.
Many phosphate ore projects underperform due to avoidable mistakes:
Applying direct flotation to high-Mg ores → poor selectivity
Ignoring slime effects in fine-grained ores → unstable flotation
Using generic reagent schemes without ore-specific optimization
Underestimating the impact of Mg²⁺ and pH control
These are not equipment issues—they are process selection issues.
☞Engineering reality: Correct process selection at the design stage can determine long-term plant performance.
Process selection often has a greater impact than equipment configuration.
Even ores with similar grades can behave very differently in flotation. Without systematic metallurgical testwork, process design becomes high-risk.
Essential testwork includes:
Mineral composition and dissemination analysis
Grinding fineness vs. P₂O₅ distribution
Liberation characteristics
Reagent scheme optimization
☞What this means for your project:
Lower commissioning risk
Reduced trial-and-error costs
Faster achievement of design capacity
From engineering experience, investing in testwork upfront significantly reduces post-startup adjustments and ensures stable long-term operation.

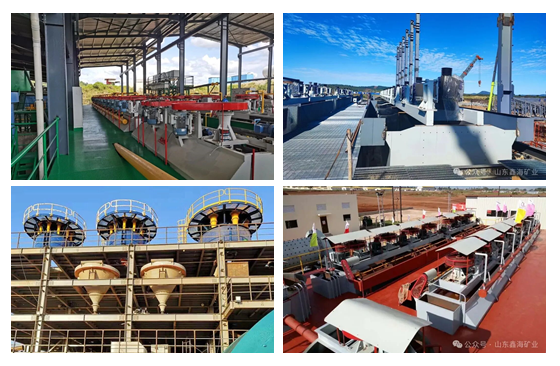

Xinhai Mining has delivered a wide range of concentrator projects worldwide:
Uganda: 720 t/d Phosphate Concentrator
Guinea: 15,000 t/d Gold Concentrator
Zimbabwe: 2,000,000 t/a Lithium Concentrator
Nigeria: 1,000 t/d Copper-Silver Concentrator
