xhc jaw crusher

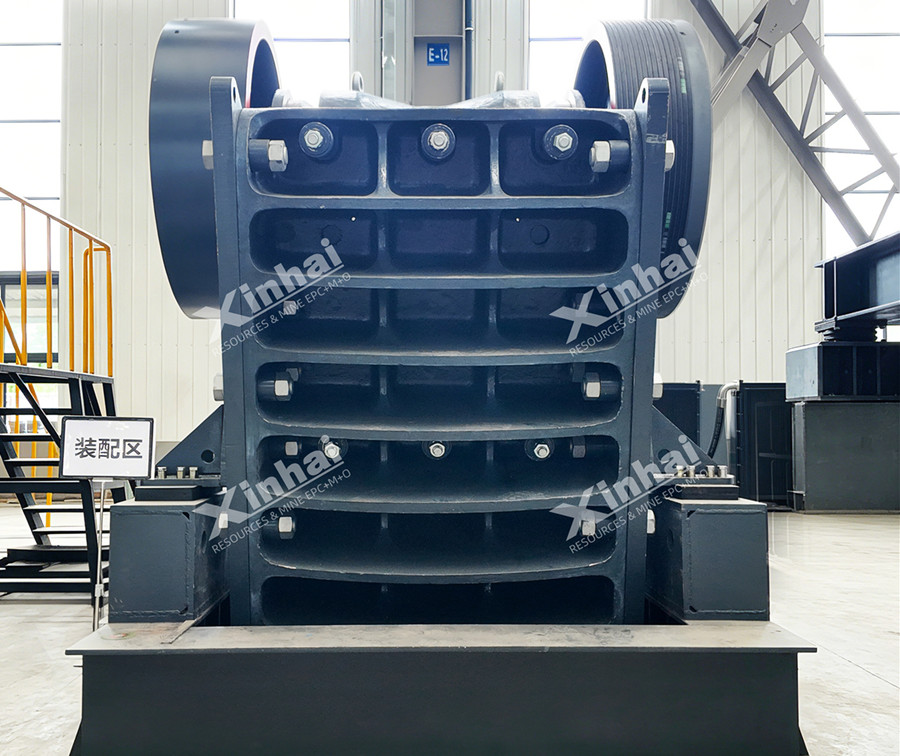

XHC Jaw Crusher

[Introduction]: The XHC Jaw Crusher is an upgraded coarse crushing equipment designed with a deep V crushing chamber for higher efficiency and larger throughput.

[Capacity]: 40–1435 t/h

[Improvement]: Compared with traditional jaw crushers, the XHC series delivers better crushing performance, longer service life, and more stable operation through optimized structural and mechanical design.

CHATCHAT MESSAGEMESSAGE

ADVANTAGES

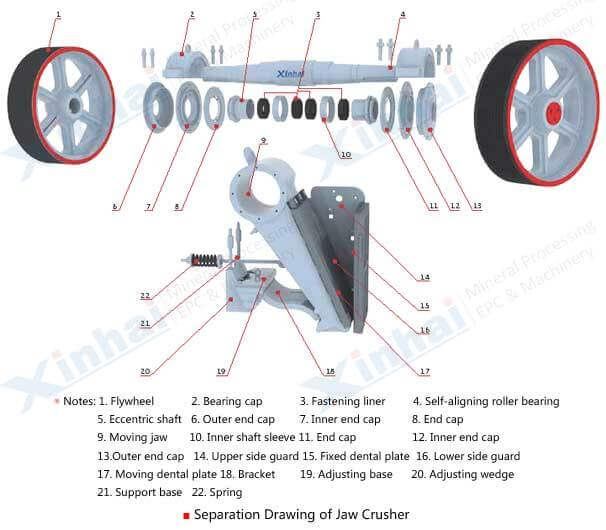

PRODUCT STRUCTURE

The XHC Jaw Crusher crushes material through the periodic movement of the moving jaw against the fixed jaw. Materials are compressed, split, and broken inside the crushing chamber, then discharged from the outlet after repeated crushing cycles.

xhc jaw crusher principle

TECHNICAL PARAMETERS

ModelWeight (kg)Feed Opening Width (mm)Feed Opening Depth (mm)Max. Feed Size (mm)Power (kW)Discharge Opening Range (mm)Main Shaft Speed (rpm)
XHC6374006304403604540~100340
XHC8095008005104207540~175350
XHC96119009305804809060~175330
XHC10023300100076062011070~200260
XHC10617100106056058011070~200280
XHC11029500110085070016070~200230
XHC11621500115080066013270~200260
XHC12029500120087072016070~175230
XHC125439001250950780160100~250220
XHC1304400013001000820160100~250220
XHC1405400014001070880200125~250220
XHC15061500140012001000200125~250220
XHC16088500160012001000250150~300220
XHC200137500200015001300400175~300200
XHC305430300137576063016070~200260


Model40mm50mm60mm70mm80mm90mm100mm125mm150mm175mm200mm225mm250mm275mm300mm
XHC6340–4555–6065–7080–9095–105110–120120–135--------
XHC8055–7565–9580–11095–135110–150125–175140–190175–245210–290245–335-----
XHC96--105–135125–155140–180160–200175–225220–280265–335310–390-----
XHC100------125–175145–200160–220180–250220–310265–365310–430355–490-
XHC106------150–185165–215190–235205–265255–325305–385355–450395–500-
XHC110------160–220175–245190–275215–295260–360310–430350–490405–555-
XHC116------165–205180–235205–255225–285270–345320–405370–465410–520-
XHC120------175–240195–270210–305235–325285–395340–475385–540--
XHC125-------245–335295–405345–475395–545445–615495–685545–755-
XHC130-------270–369325–446380–523435–600490–677545–754600–831-
XHC140-------325–445380–530435–605495–685550–760610–840--
XHC150-------340-470400-555460-635520-720580-800640-880--
XHC160--------430-610495-695560-790625-880685-965745-1055815-1145
XHC200---------630-890710-1000785-1105865-1215940-13201015-1435
XHC3054------210–270240-300260-330285-365345-435405-515465-595530-670-
