The global ball mill market, worth about US$4.25 billion in 2025, is forecast to reach US$5.65 billion by 2032 (CAGR ≈ 4.15%), with China leading the pace at over 35% of worldwide sales and roughly 8% annual growth. Bigger capacity, lower energy use, and smarter control are the industry's watchwords, and expanding copper, lithium, and nickel projects are turning them into concrete demand. At Xinhai, the Intelligent Equipment Research Institute has been investing accordingly—upgrading our ball mill range year after year to keep large mills reliable in the world's most demanding mines.
Ball mills are the heart of any mineral processing plant — and the single largest source of operating cost. Grinding accounts for approximately 30% of overall plant operating costs, with ball mills representing around 50% of grinding expenditure. The right mill size, type, and configuration is not just an equipment purchase; it is a long-term commitment to uptime, throughput, and total cost of ownership.

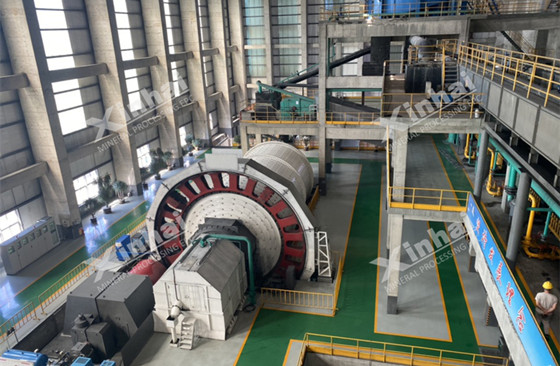

Xinhai Mining addresses this challenge head-on with a comprehensive range of large-scale ball mills engineered for the most demanding mineral processing applications. From medium-sized overflow and grate mills to flagship diameters above 4 meters, every unit is designed, manufactured, and tested under one roof — eliminating the coordination gaps that plague multi-supplier projects.
Why Grinding Decisions Matter
30% of plant costs: Grinding is the largest controllable cost center in most mineral processing operations.
50% of grinding cost: The ball mill dominates grinding expenditure — selection directly impacts lifecycle cost.
Uptime is everything: A mill that cannot sustain high-load operation erodes throughput and margins daily.
Scale is the trend: Mines are processing lower-grade ore at ever-larger volumes, driving demand for larger, more efficient grinding circuits.

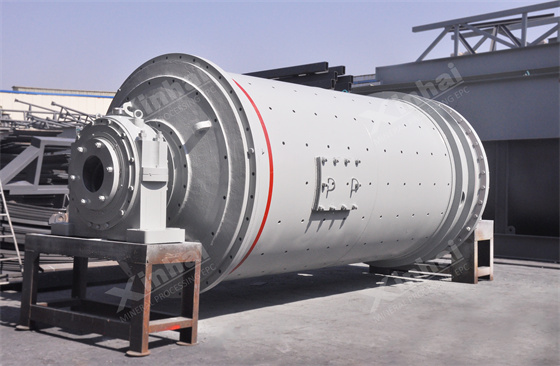

Xinhai Ball Mill Product Matrix
| Model | Diameter × Length | Type | Status | Application |
|---|---|---|---|---|
MQGφ4.0×7.0 | Ӱ4.0 × 7.0 m | Overflow / Grating | In Production | Medium-Large Plants |
MQYφ4.5×7.0 | Ӱ4.5 × 7.0 m | Overflow / Grating | Assembly / Test Run | Large-Scale Projects |
Ӱ5 m-Class | ≥ Ӱ5 m | Custom Design | R&D Phase | Strategic Mineral Projects |
Autogenous / SAG | Custom | AG / SAG | Available | Primary Grinding |
Note: Diameter 7m and above mills are available from Xinhai's intelligent manufacturing bases. Specific parameters are subject to change based on ongoing technological updates.
What separates Xinhai from smaller fabricators is not assembly — it is the heavy heat treatment and precision machining that underpin every large ball mill. A mill shell that warps in service is not a procurement problem; it is a manufacturing problem. Xinhai’s vertically integrated production chain ensures that every critical dimension is controlled from billet to finished barrel.

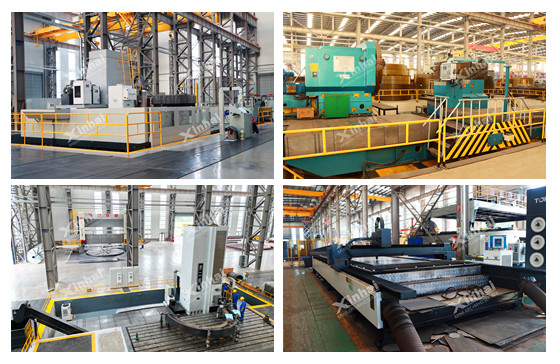

Heavy Equipment Manufacturing Capabilities
Machining: The mining equipment base features a 100-ton CNC floor-type lathe capable of machining workpieces up to 6m in diameter and 10m in length, primarily for ball mill cylinders. A C540 double-column vertical lathe handles end covers up to φ4m drum diameter.
Plate Rolling: W11S-503200 universal plate rolling machine with 50mm maximum plate thickness and 3,200mm maximum width, processing ball mill cylinders, flotation tank bodies, and mixing tank bodies.
Gear Hobbing: Y311000K gear hobbing machine machining diameters from 2.4m to 10m with maximum module of 40mm — covering large gears for ≥ӷ5.5m ball mills.
The Heat Treatment & Quality Control Chain
Large-diameter mill shells require specialized heat treatment to ensure structural integrity under continuous rotational stress. Xinhai’s advanced materials base and manufacturing facilities implement a rigorous quality protocol:

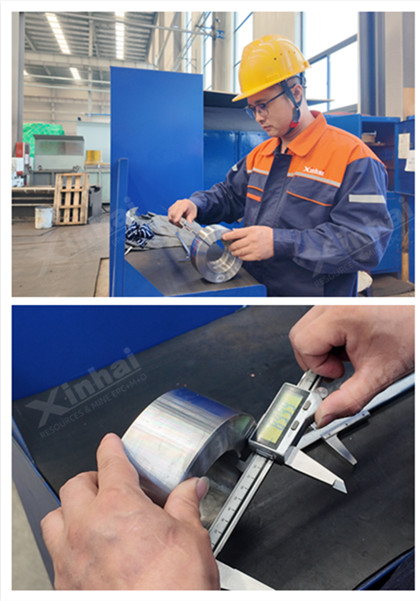

Billet selection and material certification with ISO 9712 non-destructive testing (NDT) qualification
Precise controlled-temperature heat treatment cycles for stress relief and grain structure optimization
360-degree coordinate measuring machine (CMM) inspection of critical dimensions
Weld inspection and quality verification per ISO 9001:2015 and CE certification standards
Hydrostatic and rotational testing before dispatch

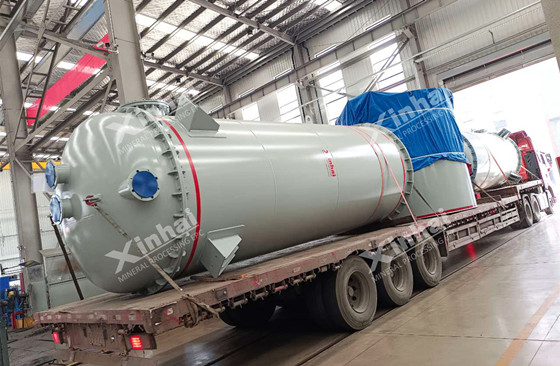

Global Logistics & Delivery
Xinhai’s global supply chain, packaging, and customs clearance capabilities support the efficient delivery of modular and prefabricated processing equipment and supporting facilities. By the end of H1 2025, Xinhai had dispatched more than 170 shipments and 250+ containers to customers in over 100 countries.
ERP with Unique Product Codes: Xinhai uses an ERP system with unique product codes to improve inventory management, shipment accuracy, and traceability, helping reduce errors throughout the delivery process.
Xinhai’s ball mill technology continues to evolve along three strategic pillars: energy efficiency, customization, and intelligent monitoring. These advancements are the result of more than 100 technical experts dedicated to mining equipment R&D and over 200 patents covering core equipment and control systems.
Energy-Saving Technology Upgrades
Xinhai has pioneered several energy-saving modifications that reduce mill operating costs significantly:
Rolling bearing replacement: Replacing sliding bearings with rolling bearings reduces energy consumption by 20–30%.
Groove-type ring lining: Innovative lining design improves grinding efficiency and extends liner life.
Multiple series: Energy-saving overflow, grating, and cone-type mills are continuously iterated for different ore characteristics.
Customization for Every Ore
No two mines are alike — and no two mill specifications should be. Xinhai engineers customize mill models and components based on:
Ore hardness and grindability
Feed particle size and target product fineness
Plant throughput requirements
Circuit configuration (overflow, grate, or cone discharge)
Liner, ball charge, and bearing specifications

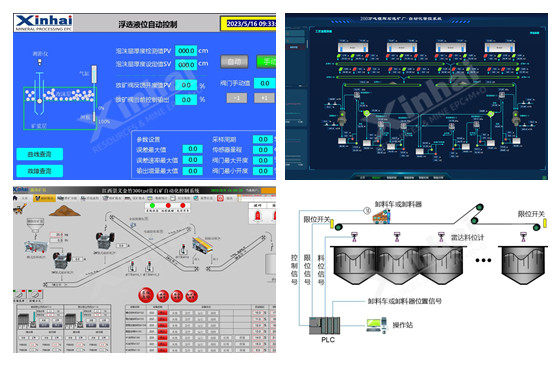

Xinhai Intelligent Mineral Processing Control System
Beyond the equipment itself, Xinhai integrates systems that protect mill assets and optimize performance:
Ball Mill Condition and Safety Monitoring: Real-time collection of temperature, vibration, grinding noise, and power data enables health assessment and fault early warning.
Flotation Level & Aeration Control: Siemens PLC-based systems with self-developed actuators improve concentrate grade and recovery.
Automated Ball Charging: XHGY automatic ball charging systems maintain optimal ball charge for consistent grinding efficiency.

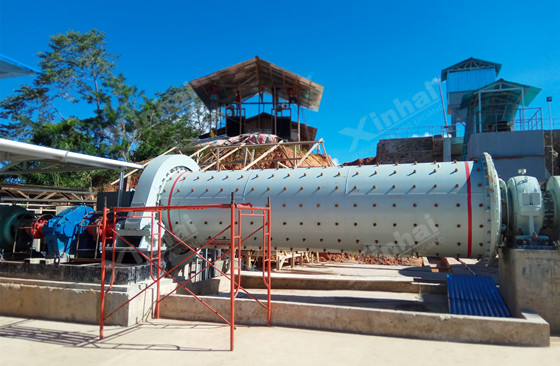

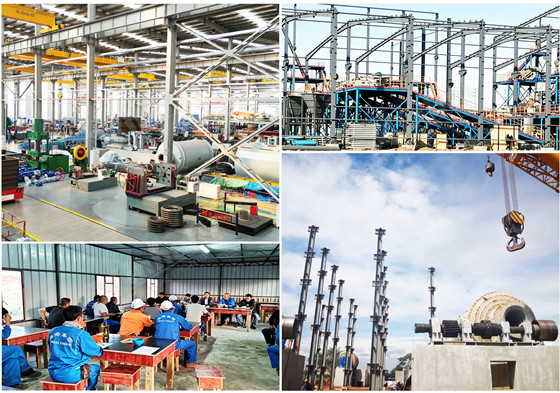

Xinhai delivers complete, plant-scale ball mill solutions as part of its full-industry-chain (EPC+M+O) service model. Whether you are designing a greenfield project or optimizing an existing plant, Xinhai provides integrated grinding circuits backed by manufacturing, installation, and operational support.
Why Partner with Xinhai for Ball Mill Projects
One-Stop Service: From test research to equipment manufacturing, installation, and operation — all under one provider.
Proven Delivery: Zimbabwe lithium project delivered 170 million units in just 3 months, achieving full production within a year.
Global Experience: Projects across Africa, Asia, South America, and the Middle East in 100+ countries.
Certified Quality: ISO 9001:2015, CE, CSA, and ISO 9712 NDT certifications across the product range.
Representative Global Projects
| Project | Location | Equipment | Outcome |
|---|---|---|---|

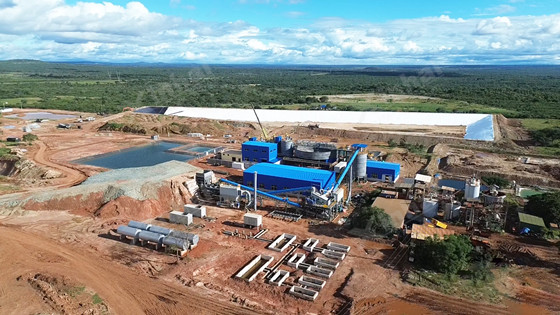

2 Mt/a Gold Mine Expansion | Zimbabwe | ӷ4.5×6.0m Ball Mill | 170M units delivered in 3 months |
3.5 Mt/a Copper Project | Zambia | 130m3 Circular Flotation Cell | Full-scale production achieved |
2 Mt/a Spodumene Project | Zimbabwe | MQYφ4.5×7.2 Ball Mill | Full production within 1 year |
3,000 t/d Gold CIL Plant | Guinea | MQGφ4.3×7.2 Grid Ball Mill | Commissioned on site, client praised |

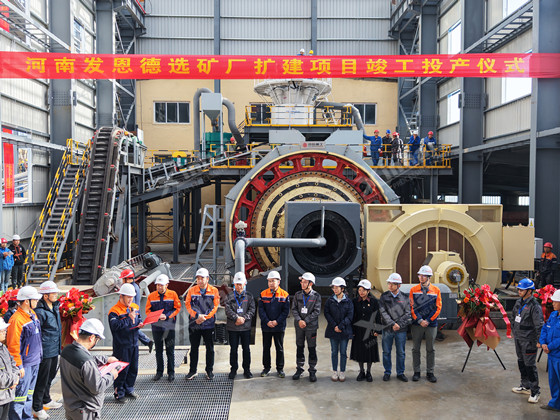

3,000 t/d Polymetallic Flotation | Henan, China | φ4.3×7.2 Ball Mill | Completed & commissioned in 198 days |
Ready to optimize your grinding circuit?
Our mining equipment R&D team will help you select the right mill configuration for your ore and target throughput.
Request a Ball Mill Selection Report
Get a customized milling solution backed by Xinhai's 30+ years of mining expertise.
Contact Xinhai Technical Team
Share your project details and our engineers will get back to you shortly.
