Copper-cobalt ore serves as a primary raw material for extracting copper and cobalt metals. In recent years, with the steadily increasing demand for these two metals, copper-cobalt mining projects have drawn significant attention worldwide. Flotation is the most commonly used method for the beneficiation of copper-cobalt ores. This article outlines the flotation process for copper-cobalt ore and presents a representative project case.
For copper-cobalt ores with significant differences in floatability and minimal interference from gangue minerals such as pyrite, a preferential flotation process is recommended. This method enables stepwise recovery of copper and cobalt, resulting in a higher-grade concentrate. The flotation process is as follows:
1. Ore Pretreatment
The copper-cobalt ore is first crushed and ground. Then, lime (CaO) is added to the slurry to stabilize the pH in an alkaline range of 9–10. Lime serves to inhibit the surface activity and floatability of gangue minerals such as pyrite.
2. Copper Roughing
During the roughing stage, the collector YK1-11 is used. It is selectively adsorbed on the surface of copper minerals to form a hydrophobic layer. MIBC is used as the frother to regulate the stability of the froth layer. Bubbles generated by aeration and agitation in the flotation cell carry the copper minerals to the froth layer to obtain a copper rough concentrate.
3. Copper Cleaning (1–3 Stages)
The copper rough concentrate undergoes 1–3 cleaning stages to further improve the concentrate grade by removing entrained gangue minerals and cobalt minerals.
4. Cobalt Roughing and Cleaning
The tailings from copper flotation are used for cobalt recovery. Typically, a multi-stage flotation process (roughing + scavenging + cleaning) is employed to obtain a cobalt-sulfur concentrate. Butyl xanthate is added as the collector, while MIBC or pine oil is used as the frother during cobalt flotation.
For copper-cobalt ores with complex mineral compositions, preferential flotation cannot effectively separate copper and cobalt. In such cases, a mixed flotation process combined with staged grinding is recommended. The specific process is as follows:
1. Crushing and Primary Grinding
The run-of-mine ore is crushed to below 2 mm, and the grinding fineness is controlled so that 60%–70% passes through 0.074 mm. At this stage, copper-cobalt aggregates are partially liberated, though some intergrowths are still allowed.
2. Rough Flotation
A reagent combination of butyl xanthate + BKNL + pine oil is used. The pulp concentration is maintained at 25%–30%, and a copper-cobalt mixed rough concentrate is floated.
3. Regrinding of Rough Concentrate
The mixed rough concentrate is further ground in a ball mill to break down the intergrowth structures between copper and cobalt minerals, achieving a monomer liberation rate of over 90%. A hydrocyclone closed-circuit system ensures that coarse particles are returned for regrinding.
4. Multi-stage Cleaning
This stage aims to produce a high-quality copper-cobalt mixed concentrate. Sodium silicate (Na₂SiO₃) is used to depress silicate gangue minerals, while lime (CaO) maintains the desired pulp pH. After 3–4 cleaning stages, entrained gangue is gradually removed, resulting in a purified copper-cobalt mixed concentrate.
5. Copper-Cobalt Separation
A magnetic separation–flotation combined process is employed: iron is first recovered from iron-bearing minerals via magnetic separation, followed by flotation to separate copper and cobalt. For refractory ores with difficult separation characteristics, hydrometallurgical methods may be adopted, with copper and cobalt recovery rates exceeding 95%.
In the flotation process of copper-cobalt ore, the main operational stages include crushing and grinding, flotation (roughing and cleaning), concentration, and dewatering. The key equipment required for each stage includes

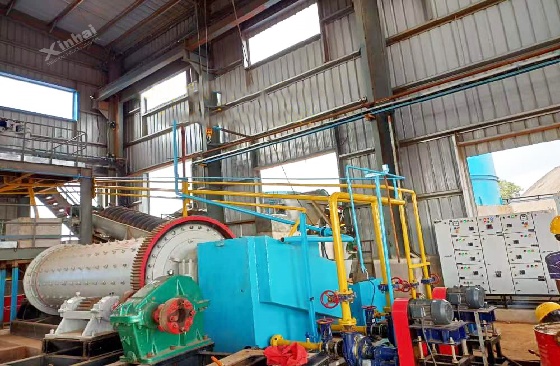

Crushing and Grinding: jaw crusher, cone crusher, ball mill

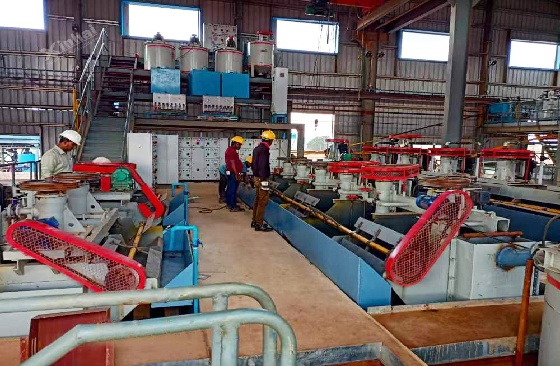

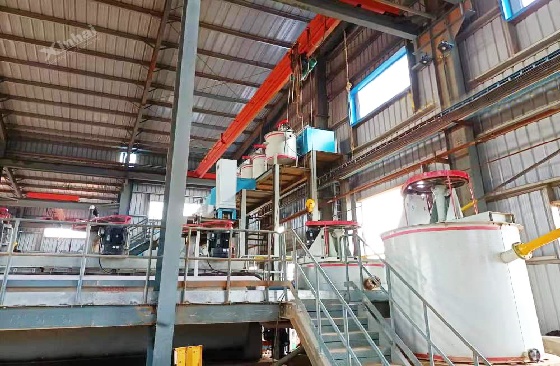

Flotation (Sorting): slurry agitation tank, mechanical agitation flotation cell/ flotation column, magnetic separator

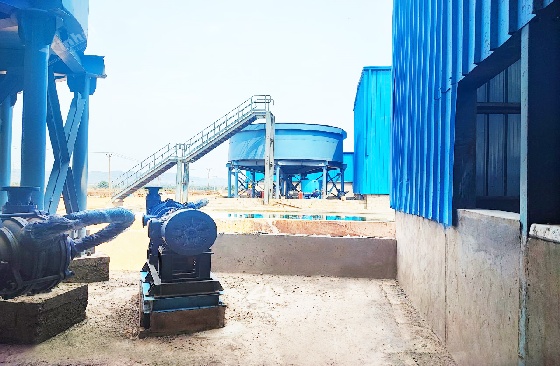

Concentration and Dewatering: flotation concentrate launder, thickener, filter press / vacuum filter
In addition to this core equipment, various auxiliary equipment is also used, such as vibrating screens, classifiers, hydrocyclones, slurry pumps, and belt conveyors.
This project is located in the Democratic Republic of the Congo (DRC), and the ore processed is highly oxidized copper-cobalt ore. Based on results from a mineral processing test, a "cascading flotation + high-intensity magnetic separation" process was selected. The flotation tailings were subjected to magnetic separation for impurity removal.
Copper recovery rate reached 79.21%,Cobalt recovery rate was 33.33%.
After process optimization, the grade of copper concentrate increased by 1.09%, and cobalt concentrate by 0.03%.
This customized process—based on laboratory testing and combining flotation with magnetic separation or hydrometallurgy—enabled the efficient recovery of copper and cobalt resources, while also reducing mineral processing costs.
Conclusion
With the continued exploitation of copper-cobalt resources, low-grade copper-cobalt ores will become a key focus of future beneficiation efforts. The formulation of scientific, cost-effective beneficiation flowsheets and the use of high-performance, intelligent mineral processing equipment will be critical to ensure project feasibility and profitability.
