Hydrocyclone

[Introduction] : A hydrocyclone with involute feeding

[Capacity] : ≤542m³/h

[Improvement] : Unique involute feeding eliminates the disturbance, reduces wear and improves the classification efficiency

If you want to know more information, like quotation, products, solutions, etc., please contact us online.

Advantages

01

Adopting the wear-resistant rubber as the inner lining, the service life can be extended by 2-4 times;

02

The way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes a smooth movement of liquid inside cyclone, therefore gives a sharp classification;

03

The structural design is reasonable, the grading index is high, and the index fluctuation is small.

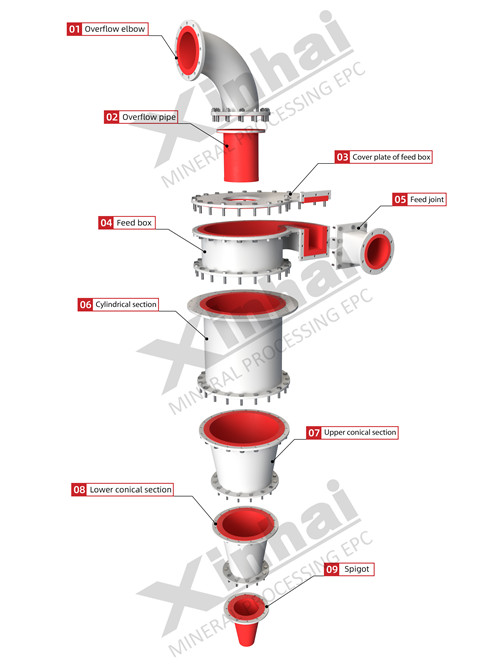

Product Structure

The working principle of Xinhai hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.

Technical Parameters

ModelSpec.Processing Capacity (m3/h)Partition Size (μm)Diameter of Overflow Port (mm)Diameter of Dust- Setting Nozzle (mm)Inlet Pressure (MPa)
XC II F 15015010 ~2325 ~7430 ~508~220.06~0.15
XC II F 20020017 ~3828 ~8040 ~6516 ~32
XC II F 25025024 ~5330 ~8265~10016 ~40
XC II F 30030040~10036 ~9065~12020 ~40
XC II F 35035056~11840~10080~12030 ~70
XC II F 37537574~15742~10590~13530 ~70
XC II F 45045090~19244~110100~15030 ~70
XC II F 500500128~30050~115130~22035~100
XC II F 550550155~36852~120140~24035~100
XC II F 600600200~46857~125160~26065~110
XC II F 660660237~52460~130180~28080~150
