The Xinhai Smart Mine Management System is an advanced digital platform for mine management, supporting modern mine construction and smart mining operations.
By integrating 3D models, 2D drawings, and mobile technologies, the system enables construction teams to access design information instantly on-site, improving construction accuracy, efficiency, and project coordination across the entire mining project lifecycle.
Want to know how to use a smart mining system to get mining work done faster and safer? This article breaks it down for you.
Difficulty Aligning Drawings with On-Site Conditions
In traditional mine construction, a significant information gap often exists between design data and the worksite. Construction personnel must repeatedly cross-check paper drawings in complex site environments to identify components, confirm parameters, and check bolt specifications. Even a simple query may take several minutes, and frequent misinterpretations or omissions often lead to persistently high rework costs.
As a pioneer in the digitalization and intelligentization of mining operations, Xinhai directly addresses frontline operational challenges by independently developing an intelligent mine management system, driving the digital transformation of the entire mining process through technological innovation.
The Xinhai Digital Smart Mine Management System is an integrated 3D/2D digital management platform designed for smart mines and factories. The system fully integrates 3D models with 2D drawings from the design phase. Through a mobile app, on-site personnel can scan QR codes to instantly locate components, access bolt specifications, open drawings, and verify checklists—delivering design information accurately and efficiently to the field while significantly improving construction efficiency.
(QR code component tracking in mining construction)
01 QR Code Component Query and 3D Model Visualization

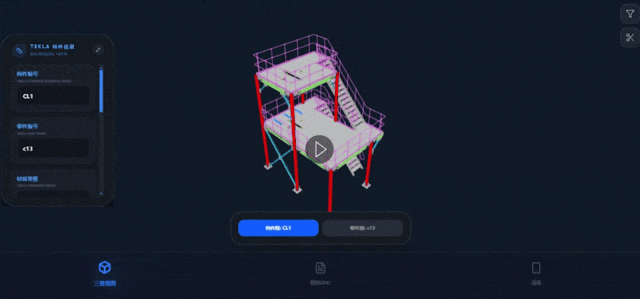

By scanning QR codes on components or parts via a mobile device, on-site personnel can directly open the 3D model view. The selected component is highlighted in blue in the model, with details such as component number, material, specifications, length, and weight clearly displayed. This enables quick identification of target components within complex models.
02 Integrated 3D and 2D Drawing Management
The Xinhai Smart Mine Management System supports instant bidirectional linking between 3D models and 2D drawings, enabling seamless information transfer and improving the efficiency and accuracy of construction personnel’s understanding.
03 3D Section View for Complex Plant Structures

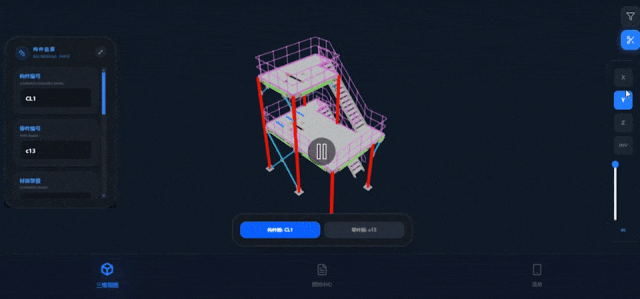

Equipped with a built-in sectioning function, the system supports arbitrary cuts along the X, Y, and Z axes. This enables easy inspection of multi-level plant interiors, complex joints, and hidden components, overcoming the limitations of external 3D views and providing deeper analysis of internal structures to support complex construction tasks.
04 Rule-Based Smart Filtering for Efficient Model Navigation

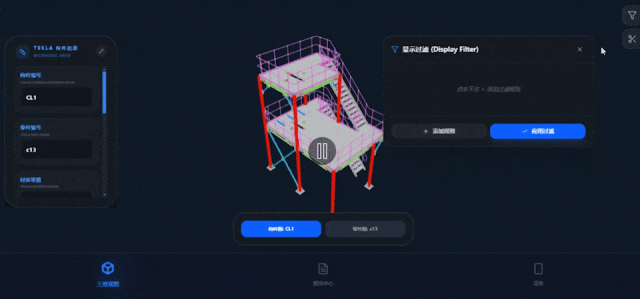

The 3D view in the Xinhai Smart Mine Management System supports rule-based dynamic filtering. Users can flexibly filter by component number, part number, or other criteria, hiding non-critical elements to focus on the current task—improving viewing efficiency and accuracy.
05 Integrated Drawings and Construction Checklists

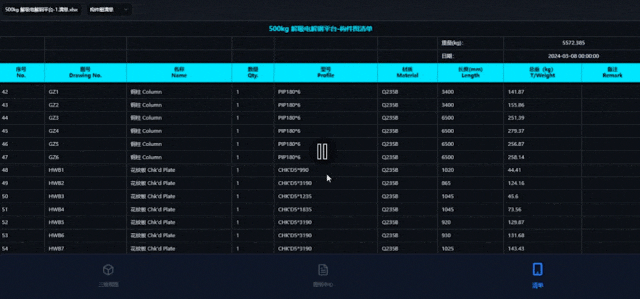

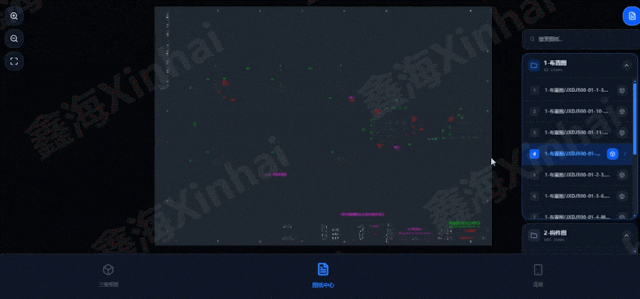

The system integrates three types of drawings—layout drawings, component drawings, and part drawings—and supports zooming, panning, and other operations for detailed viewing. It also provides three types of checklists: component, material, and bolt lists, summarizing specifications and quantities. This enables comprehensive digital management of construction information to guide procurement and construction.
The Xinhai Smart Mine Management System delivers design information accurately to the worksite, enabling convenient mobile operations anytime, anywhere, while significantly improving project quality and construction efficiency.

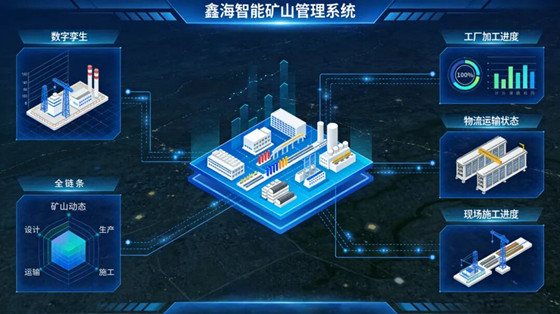

Furthermore, with digital twin technology at its core, the system integrates the entire mining workflow—including factory processing progress, logistics status, and on-site construction progress—creating a full-chain visual collaboration platform spanning design, production, transportation, and construction. It provides continuous digital support for smart construction and intelligent manufacturing.
In the future, Xinhai will continue to deeply integrate scientific research with production practices, providing global clients with digital, intelligent, and systematic end-to-end solutions and services that cover the entire lifecycle of mining construction.
